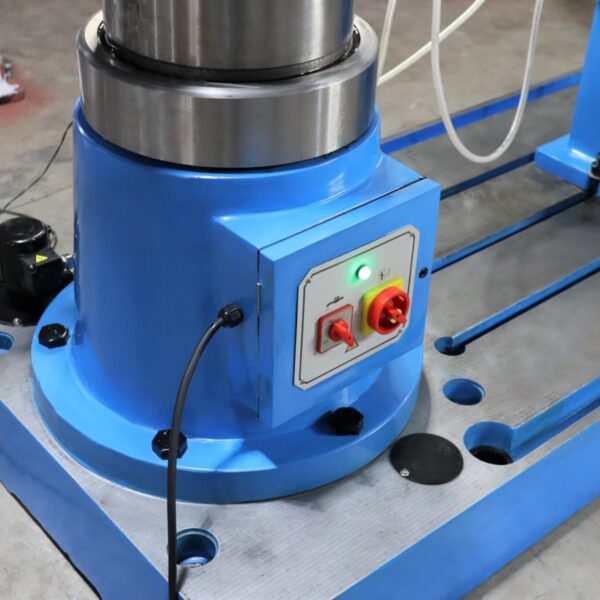

All Gear Radial Drill BANKA IR- 50R- With Hydraulic System

Imported All Gear Radial Drill Machine Z3050X16

• Drilling Capacity : 50 mm
• Spindle Travel : 315 mm
• Spindle Taper : MT-5
• Spindle Speed : 25-2000 RPM
• Column Diameter : – mm
• Max. Mini. Distance Spindle center to column center : 1600/350 mm
• Horizontal Movement of drilling Head : 1250 mm
• Max.Mini Distance Spindle Nose of base plate : 1270/370 mm

Features

• With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
• With safe and reliable feed safety machines, all parts easy operation and change.
• All control centralized on the head-stock easy operation and change.
• Main parts are made by machine centre which import KIA with high precision and efficiency, ensuring reliability and high quality.
• Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
• Spindle parts are made by special high-quality steel hear treatment to be made by first class equipment, ensuring high strength and durability.
• Main gears are machined by gear grinding, the machine ensuring high precision and low noise.

Description

Quality
We maintain our drills quality by 4 stage inspection. as manufacturing process goes ahead each stage our inspector check all parameters. Though our metal drilling drill performance and accuracy are better than other industrial drill machine manufacturer. BANKA Pillar drills have auto feed drilling system with high-speed motor. We had fitted 2 Speed Motor in our drill, it runs from 40 – 2000 RPM spindle speed.

Our toolroom drill is manufactured as per Indian Standard Test by testing instruments like,

Straight Edge Meter:
A straightedge is a tool with an edge free-form curves or straight, used for transcribing straight lines. Straightedges are used in the automotive service and machining industry to check the flatness of machined mating surfaces of base as well as the drill arm. it should not be concave and convex.

True straightness can in some cases be checked by using a laser line level as an optical straightedge: it can illuminate an accuratelystraight line on a flat surface such as the edge of a plank or shelf. It effects in the production schedule, time schedule, time saving and increase the quality of our products.

Sound Level Decibel Meter:
As per the IS test our Tool drill head sound is measured by Decibel Meter and it should be up to 85 to 90 lbs. In every Drill Machine, it should be 85 lbs and our each Drill Machine noise level is under 85 lbs.

Dial Indicator Micrometers:
Dial Indicator Micrometers is used for precise measurement of components which are done on the Drill. It’s also used to measure the apparent diameter of celestial bodies or microscopic objects and used to check test the runout of the internal taper of spindle. As per IS Test each drill machine spindle internal taper near the spindle nose should be 0.02 mm and up to end of the spindle should be 0.03 mm.

Amperemeter:
It is used to measures the current in a circuit is to break the circuit open and insert an “ammeter” in line with the circuit so that all electrons flowing through the circuit also have to go through the meter. When an ammeter is placed in series with a circuit, it ideally drops no. voltage as current goes through Drill machine main motor.

BANKA is most popular for its quality and uniqueness of our services towards their customers. Our service engineers are highly trained and skilled to design BANKA products and to serve timely services. BANKA 38 Pillar Drill is generally designed low maintenance, time saving, suitable for reckless operation and heavy metal removal.

Our Deep Drilling machine is designed for drilling medium and large parts, as well as boring, counter boring, reaming, tapping and surfacing to done with different parts and different angles. Its arm is made from solid material casting and hardened & ground. We are using the gears hardened & ground for smooth running. All control levers are quick to operate and are properly guarded against accident.

Each machine is properly checked as per IS Test Chart by our experienced engineers through testing and inspection process before dispatch from our factory. We are also using the material as Indian Standard which is used while manufacturing.
